Solar Radiation Data Derived from GOES-13 Down Until Further Notice

Solar radiation data for Northern Caribbean Region (2 km) and Puerto Rico (1 km), derived from GOES-13 will not be available until further notice.

The National Oceanic and Atmospheric Administration (NOAA) confirmed September 26, 2012, that GOES-13 has been placed in stand-by mode, following increased vibrations, or “noise,” observed in the imagery.  For more information visit

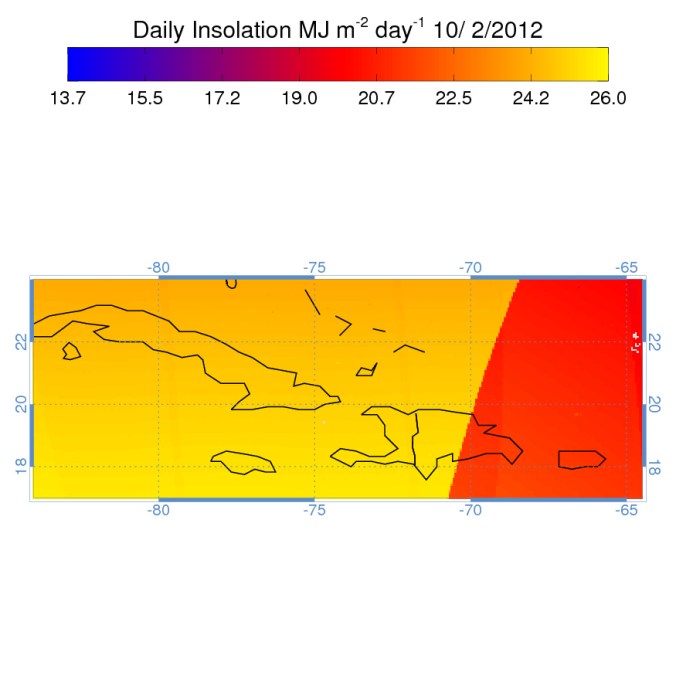

As I understand it, the short-term plan is to move GOES-14 further east to pick up most of the area covered by GOES-13.  Evidently the satellite coverage area will move eastward at 0.9 degrees per day until it moves to the new position.  Yesterday’s solar radiation data, estimated from an algorithm run at the University of Alabama, resulted in the following map:

The above data are clearly wrong, but it may be an indication of how the coverage area of GOES-14 has shifted eastward, relative to its original position shown on the day that GOES-13 went down in the following figure.

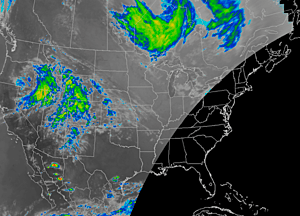

This composite satellite image from Sunday shows a lack of data from GOES-13 over the east coast of the U.S. (CIMSS Satellite Blog)

The long-term plan (around 2015) is to replace the current satellites with GOES-R, which will provide more channels, and higher space and time resolutions.
