COURSE OFFERING: MICRO-IRRIGATION SYSTEMS

Click for archived maps of reference evapotranspiration and other climate variables.
The following links will provide guidance on scheduling irrigation using the ETo map data.
Harmsen E.W., 2012. TECHNICAL NOTE: A Simple Web-Based Method for Scheduling Irrigation in Puerto Rico. J. Agric. Univ. P.R. 96 (3-4) 2012.
The following links will provide guidance on scheduling irrigation using the ETo map data.
Harmsen E.W., 2012. TECHNICAL NOTE: A Simple Web-Based Method for Scheduling Irrigation in Puerto Rico. J. Agric. Univ. P.R. 96 (3-4) 2012.
Megh R. Goyal, Mohammad N. Elnesr, Editors
http://www.crcpress.com/product/isbn/9781771880992
“I congratulate the editors on the publication of this book on micro irrigation design. Water for food production is clearly one of the grand challenges of the twenty-first century, and it is hoped that this book will help irrigators and famers around the world to increase the adoption of water savings technology such as micro irrigation.”
—Vincent F. Bralts, PhD, PE, Professor and Former Associate Dean, Agricultural and Biological Engineering Department, Purdue University, West Lafayette, Indiana
Vol. 4. Management, Performance, and Applications of Micro Irrigation
Vol. 5. Applications of Furrow and Micro Irrigation in Arid and Semi Arid Regions
Eric Harmsen, Professor, Department of Agricultural and Biosystems Engineering, University of Puerto Rico-Mayaguez Campus. Email: eric.harmsen@upr.edu
Ing. Eric Irizarry, Agricultural Engineering Extension Specialist, Cooperative Extension Service, University of Puerto Rico-Mayaguez Campus. Email: eric.irizarry@upr.edu
Dr. David Sotomayor, Professor, Department of Crop and Environmental Science, University of Puerto Rico-Mayaguez Campus. Email: david.sotomayor@upr.edu
.
As published in Inside ASABE, December 20 2013
CLICK for more information
Blog for pragwater.com
Irrigation System Construction Photos – Finca Alzamora, UPRM Campus
An irrigation system was designed and constructed for an organic fruit tree orchard in the University of Puerto Rico-Mayaguez campus farm, Finca Alzamora (Lat 18.220247°, Lon -67.145497°, see Figure 1). The system has a capacity of irrigating up to 60 trees at a rate of 25 gallons per hour. Currently there are approximately 30 small trees at the site.

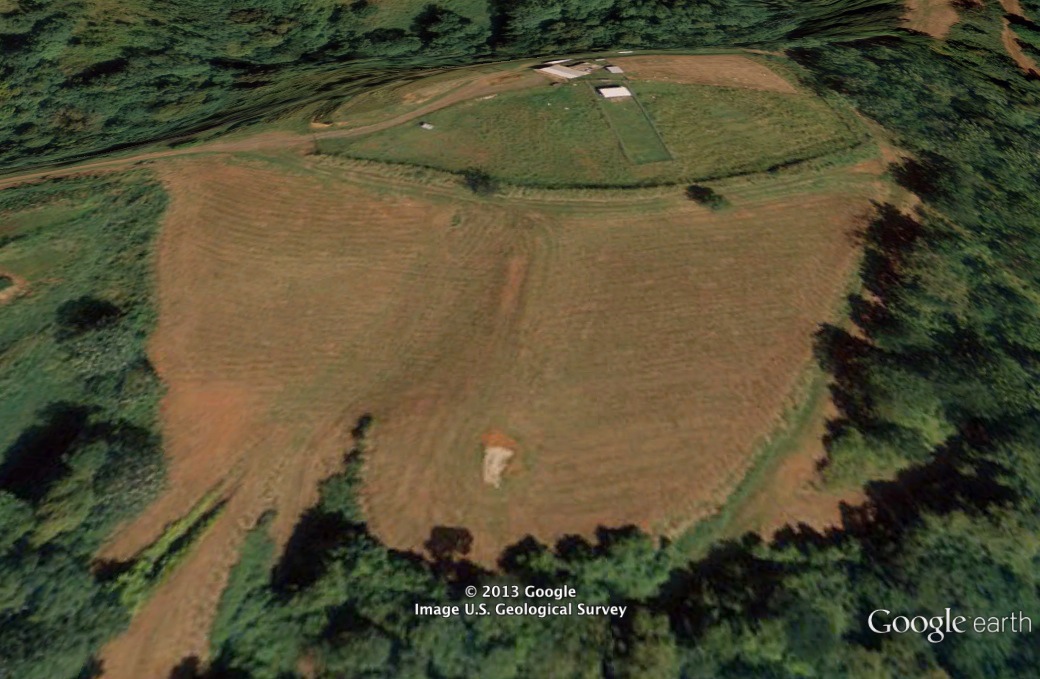

Figure 1. The organic fruit orchard is located on the left half of the hill.
The system consists of a 1.25 in. PVC mainline laid on the slope and 8 3/4 in. PVC laterals oriented along the topographic contours. All PVC pipe will be buried 1 ft below the surface (Figure 2). Two-gallon per hour pressure compensating emitters used. Up to five drip emitters or micro-spray emitters can be used. The system header is shown in Figure 3.

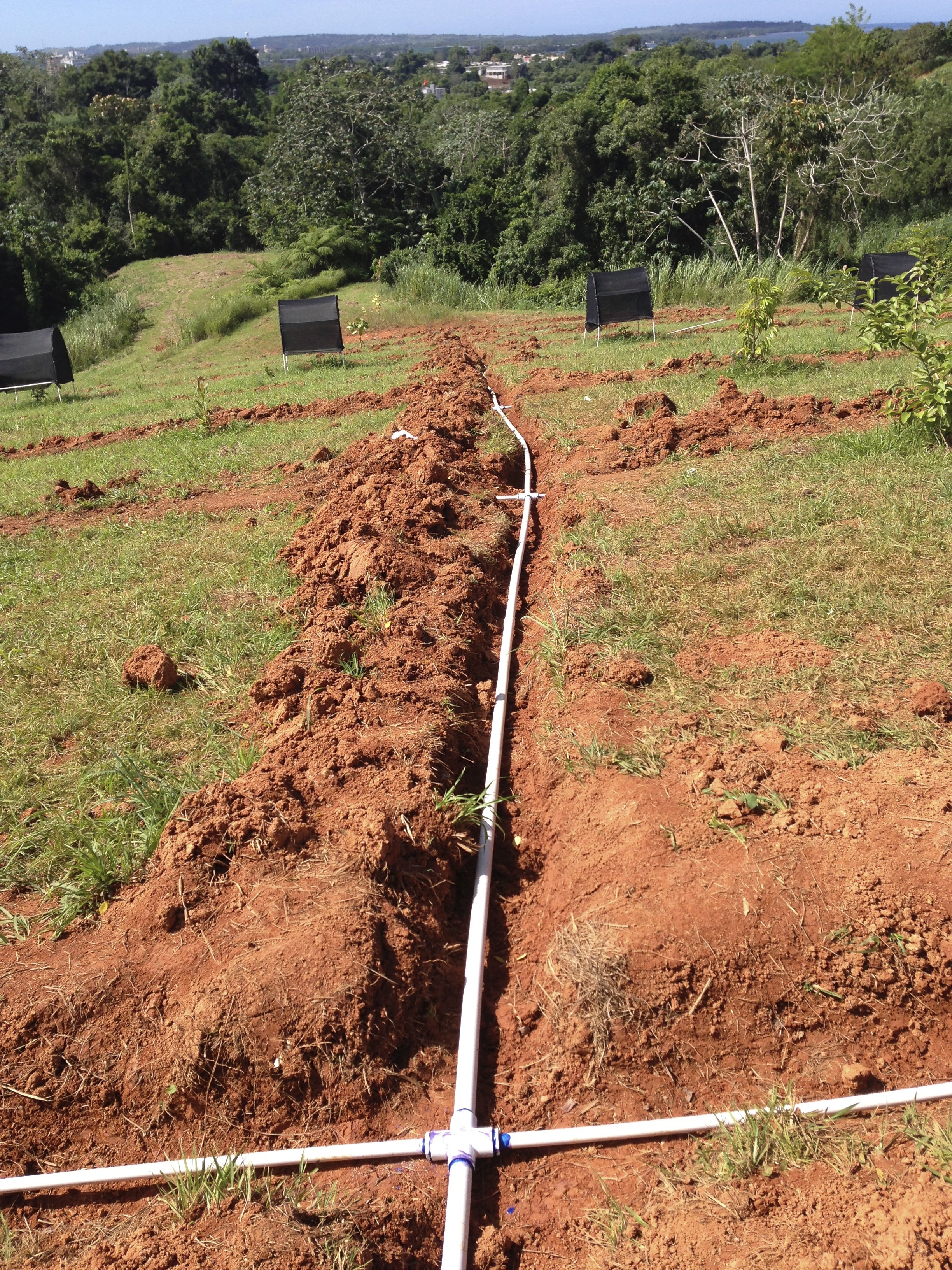

Figure 2. 1.25 in. Mainline and 3/4 in. lateral PVC tubing.

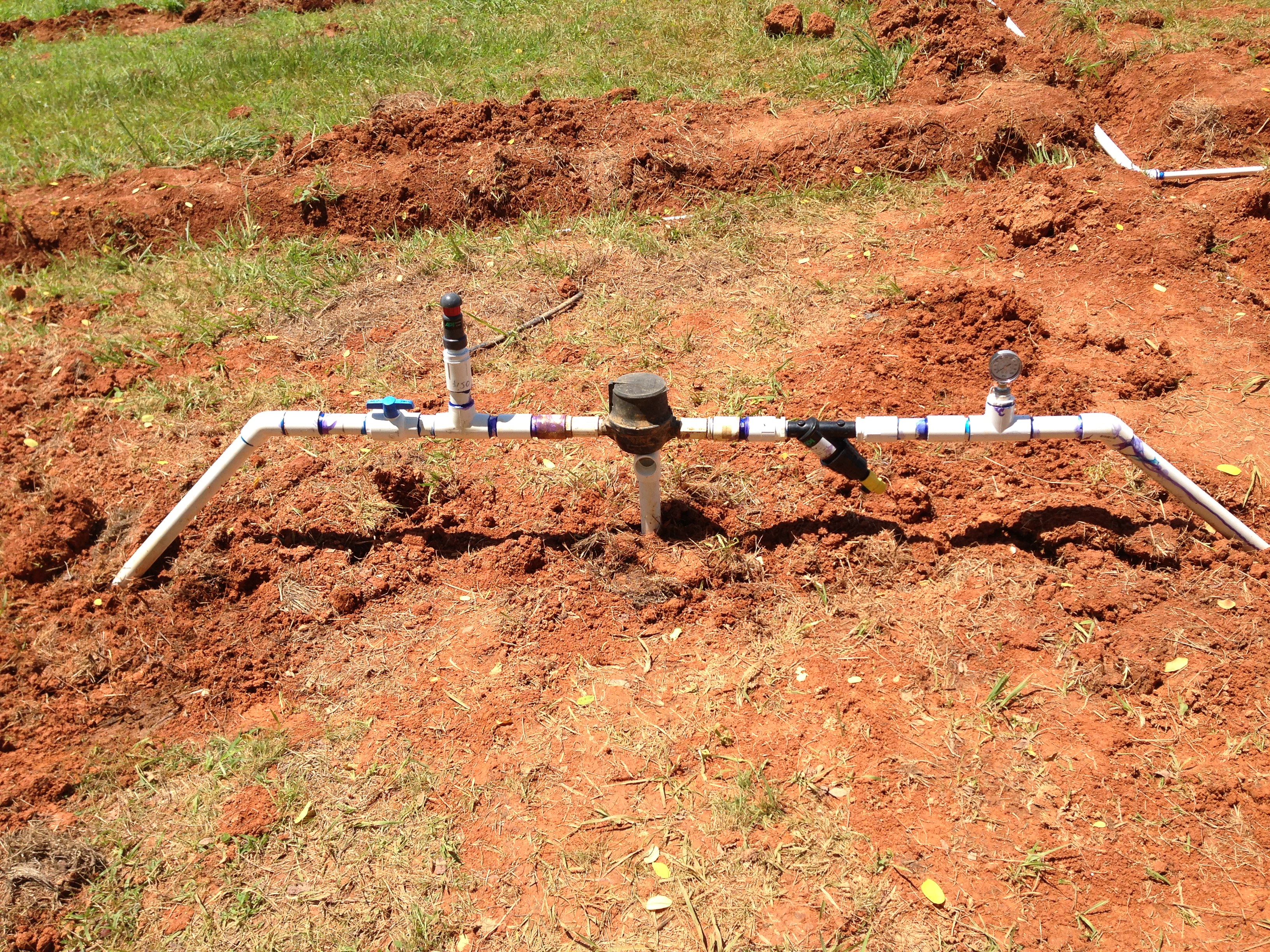

Figure 2. Irrigation system header and mainline. The header includes a ball valve, air vacuum relief valve, cumulative water meter, filter and pressure gauge.
Numerous students from Dr. Pablo Payam’s organic fruit production course and my irrigation course helped to construct the system. Figure 4 shows students gluing together pieces of PVC pipe. Click here to view more photos.

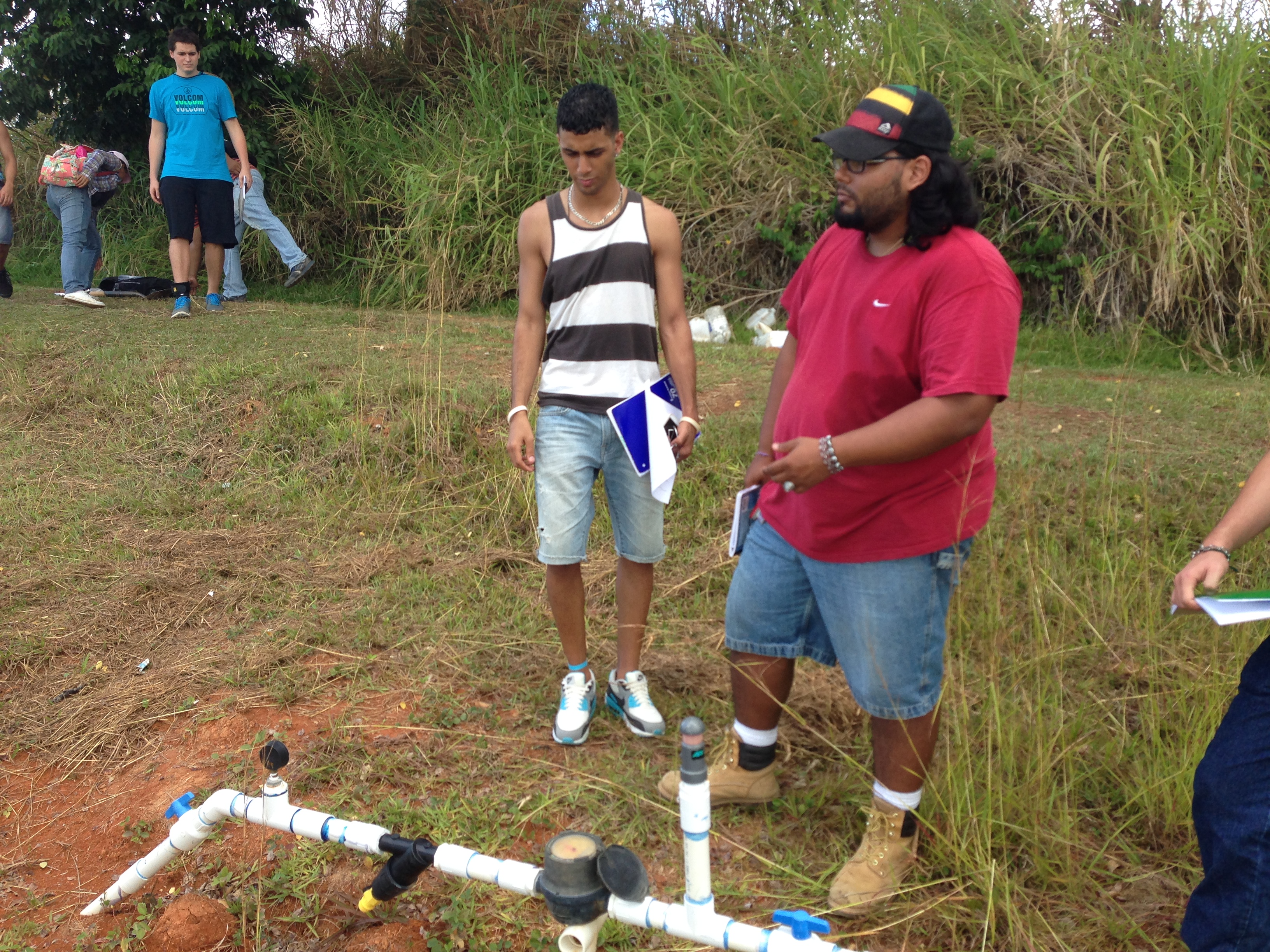

Figure 4. UPRM Agronomy students helping to construct the irrigation system.
.
